Blending Mode Limitations

Perfomance impact: Medium

Blending mode increases amount of draw calls, required to render the animation. Each time a different blend mode is used, a new draw call is required. It's important to use blend modes wisely to avoid performance issues.

  • Try to avoid using multiply and screen blend modes (using additive blend mode is less expensive).
  • Try to combine multiple slots with the same blend mode near each other in the draw order (when it's possible and don't affect result), the goal is to reduce blend mode switching as much as possible.
Animation example
warning

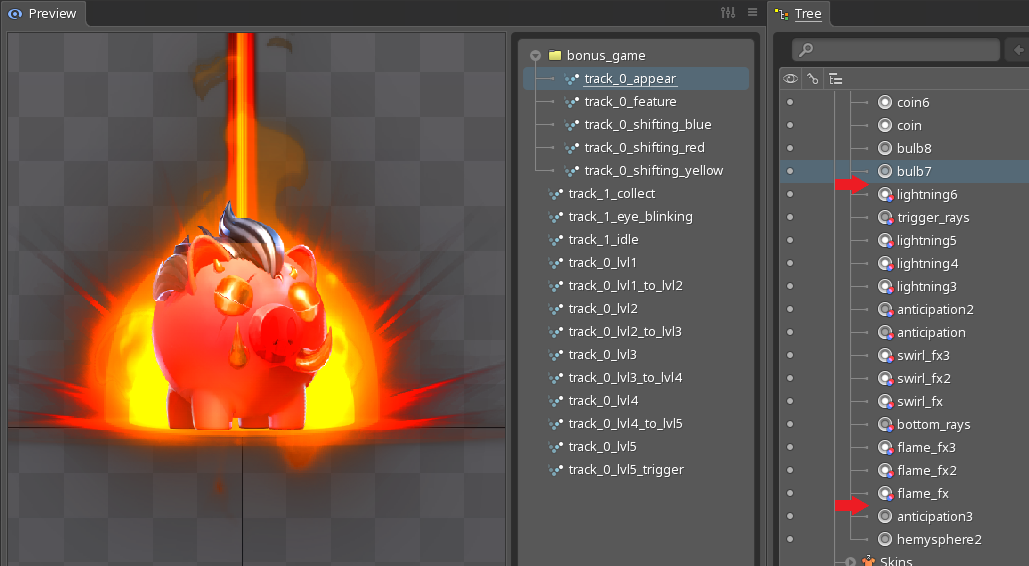

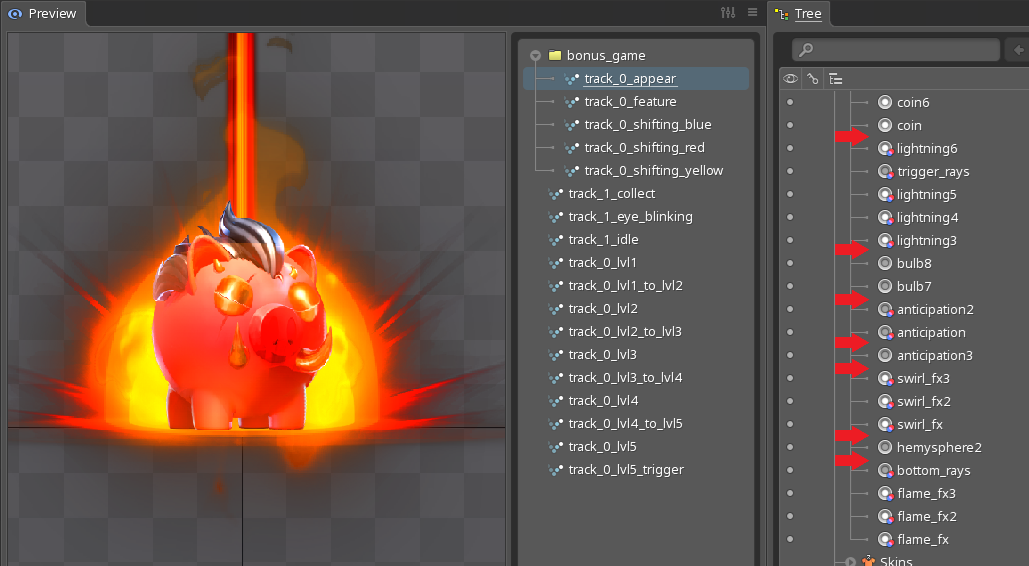

Blend mode switches 7 times. Each switching might result in an extra draw call, which is expensive for the performance. It's possible to re-arrange slots draw order to reduce the amount of blend mode switches.

example

  • Keep in mind: when using blend modes for symbols the idle state animation, these symbols might look a bit different when reels are spinning. Spinorium runtime dynamically creates a static image from the first frame of the idle state animation. Since symbols are almost always blurred when reels spinning, the difference might not be noticeable.
Animation example

Spine symbol animation with glow effect, slot has additive blend mode.

example
